Link-Belt® LMT Series
Link-Belt LMT Multi-Tool processors (LMT Series) offer a wide range of tooling options in one platform. Utilizing one body with the option to switch jaw sets, the customer is able to crack/recycle concrete, shear metal or pulverize concrete from rebar. The LMT offers an industry leading quick-change jaw design that enables jaw set changes within 15 minutes. Sized to fit excavators from a Link-Belt 210 X4 to a Link-Belt 750 X4, the LMT features bolt-on wear parts, piercing tips, cracker teeth and pulverizer teeth beds for easier maintenance and reduced downtime.
LMT Shear Jaw Features:
- Bolt on shear tips for easy and quick maintenance
- Four guide blades, razor blade and primary blades offer four usable cutting edges
- Optimum pivot geometry technology creates peak power for cutting and piercing
- Shear Shield™ protective guarding
LMT Cracker Jaw Features:
- Cracker teeth concentrate cutting power, creating greater ability to crush through heavy concrete
- 33% improved cycle times over other conventional hydraulic systems
LMT Pulverizer Jaw Features:
- Extended wear plates aid in positioning concrete for processing
- A bolt-on tooth bed features replaceable crusher surfaces to eliminate welding
| Model |
Description |
Weight* |
Jaw Opening |
Jaw Depth |
Reach
** |
Min Excavator Weight 2nd Member (Boom Mount)*** |
Min Excavator Weight 3rd Member (Stick Mount)*** |
| LMT 210 |
Body only w/360̊ Rotation |
3,510 lbs.
1,593 kg |
|
|
|
|
|
| LMT 210S |
Shear Jaw Set w/Shear Shield™ |
1,860 lbs.
870 kg |
17 in.
432 mm |
19 in.
483 mm |
8 ft. 0 in.
2,438 mm |
20,000 lbs.
9 MT |
45,000 lbs.
20 MT |
| LMT 210P |
Pulverizer Jaw Set |
2,140 lbs.
970 kg |
38 in.
985 mm |
28 in.
711 mm |
8 ft. 0 in.
2,438 mm |
20,000 lbs.
9 MT |
45,000 lbs.
20 MT |
| LMT 210C |
Cracker Jaw Set |
2,160 lbs.
979 kg |
29 in.
737 mm |
24 in.
610 mm |
8 ft. 0 in.
2,438 mm |
20,000 lbs.
9 MT |
45,000 lbs.
20 MT |
| LMT 350 |
Body only w/360̊ Rotation |
4,650 lbs.
2,109 kg |
|
|
|
|
|
| LMT 350S |
Shear Jaw Set w/Shear Shield™ |
2,950 lbs.
1,338 kg |
22 in.
559 mm |
24 in.
610 mm
|
8 ft. 6 in.
2,591 mm |
45,000 lbs.
20 MT |
70,000 lbs.
32 MT |
| LMT 350P |
Pulverizer Jaw Set |
2,910 lbs.
1,320 kg |
43 in.
1,092 mm |
30 in.
762 mm |
8 ft. 6 in.
2,591 mm |
45,000 lbs.
20 MT |
70,000 lbs.
32 MT |
| LMT 350C |
Cracker Jaw Set |
2,620 lbs.
1,189 kg |
35 in.
889 mm |
26 in.
660 mm |
8 ft. 6 in.
2,591 mm |
45,000 lbs.
20 MT |
70,000 lbs.
32 MT |
| LMT 490 |
Body only w/360̊ Rotation |
6,840 lbs.
3,103 kg |
|
|
|
|
|
| LMT 490S |
Shear Jaw Set w/Shear Shield™ |
4,225 lbs.
1,916 kg |
24 in.
610 mm |
27 in.
686 mm |
9 ft. 6 in.
2,896 mm |
60,000 lbs.
27 MT |
100,000 lbs.
45 MT |
| LMT 490P |
Pulverizer Jaw Set |
4,305 lbs.
1,952 kg |
47 in.
1,194 mm |
33.5 in.
851 mm |
9 ft. 6 in.
2,896 mm |
60,000 lbs.
27 MT |
100,000 lbs.
45 MT |
| LMT 490C |
Cracker Jaw Set |
4,415 lbs.
2,002 kg |
38 in.
965 mm |
30 in.
762 mm |
9 ft. 6 in.
2,896 mm |
60,000 lbs.
27 MT |
100,000 lbs.
45 MT |
| LMT 700 |
Body only w/360̊ Rotation |
7,975 lbs.
3,617 kg |
|
|
|
|
|
| LMT 700S |
Shear Jaw Set w/Shear Shield™ |
4,930 lbs.
2,237 kg |
27 in.
686 mm |
28 in.
711 mm |
9 ft. 11 in.
3,023 mm |
70,000 lbs.
32 MT |
120,000 lbs.
54 MT |
| LMT 700P |
Pulverizer Jaw Set |
4,740 lbs.
2,150 kg |
51 in.
1,295 mm |
34.5 in.
876 mm |
9 ft. 11 in.
3,023 mm |
70,000 lbs.
32 MT |
120,000 lbs.
54 MT |
| LMT 700C |
Cracker Jaw Set |
4,230 lbs.
1,919 kg |
43 in.
1,092 mm |
31 in.
787 mm |
9 ft. 11 in.
3,023 mm
|
70,000 lbs.
32 MT |
120,000 lbs.
54 MT |
| LMT 750 |
Body only w/360̊ Rotation |
10,000 lbs.
4,536 kg |
|
|
|
|
|
| LMT 750S |
Shear Jaw Set w/Shear Shield™ |
7,500 lbs.
3,402 kg |
40 in.
1,016 mm |
35 in.
889 mm |
11 ft. 8 in.
3,556 mm |
90,000 lbs.
41 MT |
150,000 lbs.
68 MT |
| LMT 750P |
Pulverizer Jaw Set |
7,600 lbs.
3,447 kg |
71 in.
1,803 mm |
50 in.
1,270 mm |
11 ft. 8 in.
3,556 mm |
90,000 lbs.
41 MT |
150,000 lbs.
68 MT |
| LMT 750C |
Cracker Jaw Set |
7,720 lbs.
3,502 kg |
61 in.
1,549 mm |
39 in.
991 mm |
11 ft. 8 in.
3,556 mm |
90,000 lbs.
41 MT |
150,000 lbs.
68 MT |

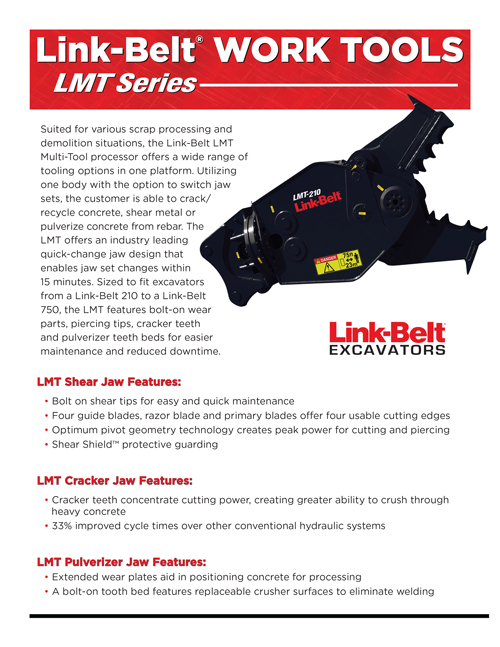

View Full Specs in Brochure
*Weight includes mounting bracket to attach to excavator.
**Distance is measured from the attachment mounting pivot (boom or stick) forward
***2nd-member installations that are at or near minimum excavator weight and all 3rd-member installations require pre-approval from LBX.
All LMT tools are covered by a full 1-year/1,800-hour (whichever occurs first) Standard Limited Warranty; warranty will be honored on tools mounted on Link-Belt excavators only.
|
