EQUIPMENT

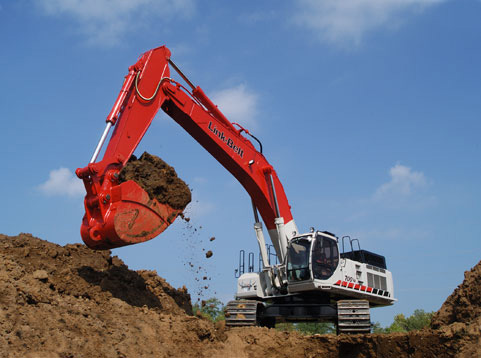

| 700 LX |
Standard Excavator |
Mass Excavator |
| Weight |
152,600 lbs. |
153,700 lbs. |
| Bucket Range |
2.12 - 4.43 cu. yd. |
2.12 - 4.43 cu. yd. |
| Arm Lengths |
9' 10"
11' 8"
13' 6"
16' 5" |
9' 10" |
| Digging Depth |
25' 10"
27' 0"
29' 5"
32' 4" |
23' 6 " |
| Maximum Digging Radius |
41' 4"
42' 4"
43' 11"
46' 11" |
37' 7 " |
| Arm Digging Force |
60,020 lbs.
55,080 lbs.
49,680 lbs.
43,050 lbs. |
60,020 lbs. |
| Bucket Digging Force |
71,260 lbs. |
71,260 lbs. |
| Maximum Swing Speed |
6.5 rpm |
6.5 rpm |
| Travel Speed |
1.8/2.7 mph |
1.8/2.7 mph |
| Gradeability |
70% |
70% |
| Engine/Type |
Isuzu AH-6WG1X-S
4-Cycle Diesel |
Isuzu AH-6WG1X-S
4-Cycle Diesel |
| Net hp @ rpm |
425 hp @ 1,800 rpm |
425 hp @ 1,800 rpm |
Click here to download full specifications as an Acrobat Reader/PDF
|
|
