EQUIPMENT

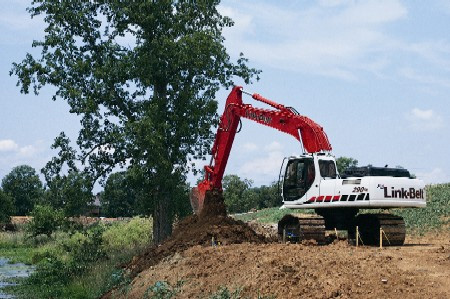

| 290 LX |
| Weight |
64,400 lbs. |
| Bucket Range |
.79 - 2.43 cu. yd. |
| Arm Lengths |
10' 6"
8' 9"
12' 0" |
| Digging Depth |
23' 5"
21' 8"
24' 11" |
| Maximum Digging Radius |
34' 7"
33' 2"
36' 1" |
| Arm Digging Force |
28,100 lbs.
31,920 lbs.
25,630 lbs. |
| Bucket Digging Force |
38,890 lbs. |
| Maximum Swing Speed |
10.4 rpm |
| Travel Speed |
1.9/3.2 mph |
| Gradeability |
70% |
| Engine/Type |
Isuzu CC-6BG1TC
4-Cycle Diesel |
| Net hp @ rpm |
177 hp @ 2,200 rpm |
Click here to download full specifications as an Acrobat Reader/PDF
|
|
