EQUIPMENT

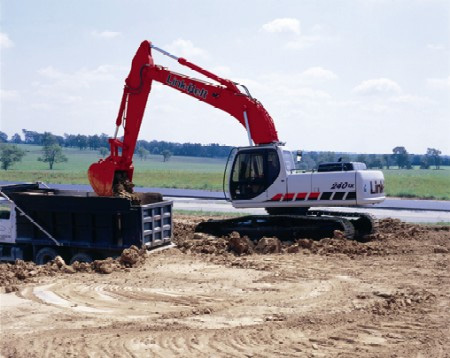

| 240 LX |
| Weight |
52,700 lbs. |
| Bucket Range |
.79 - 1.87 cu. yd. |
| Arm Lengths |
10' 2"
11' 7"
8' 2" |
| Digging Depth |
22' 10"
24' 3"
20' 11" |
| Maximum Digging Radius |
33' 8"
35' 0"
31' 11" |
| Arm Digging Force |
28,100 lbs.
25,630 lbs.
33,720 lbs. |
| Bucket Digging Force |
38,890 lbs. |
| Maximum Swing Speed |
10.4 rpm |
| Travel Speed |
2.1/3.4 mph |
| Gradeability |
70% |
| Engine/Type |
Isuzu BB-6BG1T
4-Cycle Diesel |
| Net hp @ rpm |
162 hp @ 2,150 rpm |
Click here to download full specifications as an Acrobat Reader/PDF
|
|
